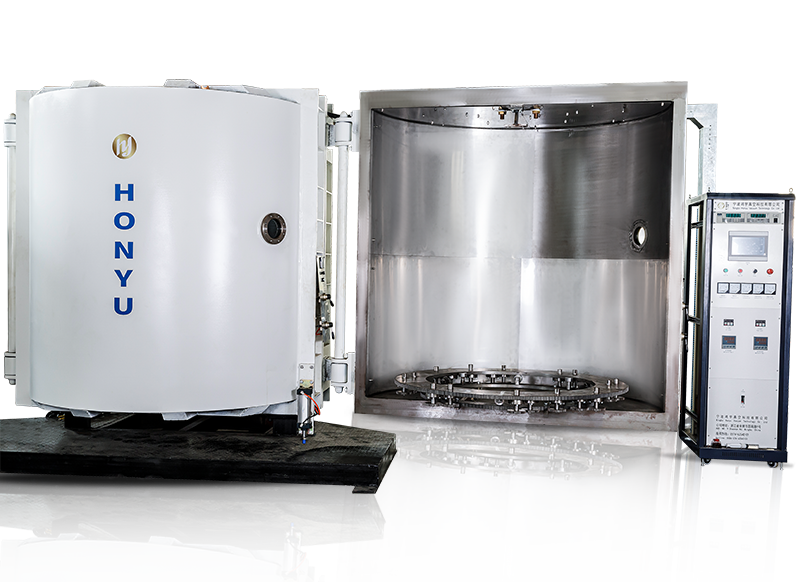

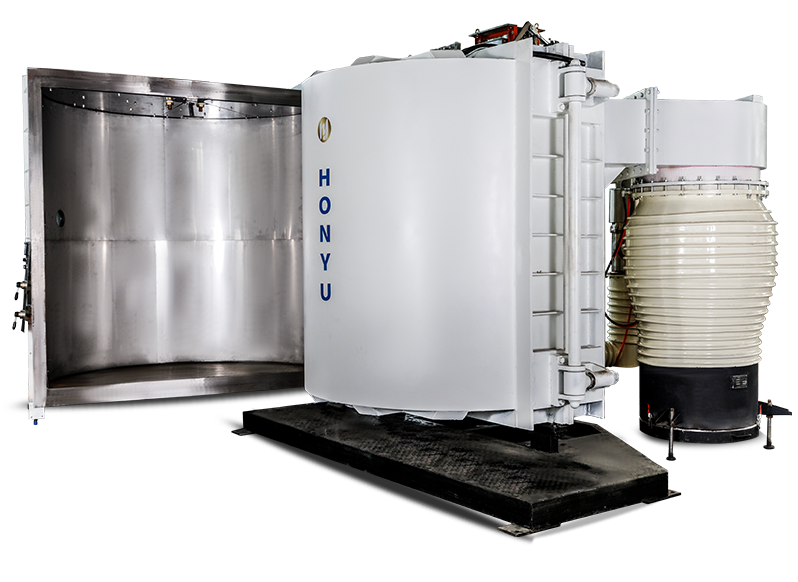

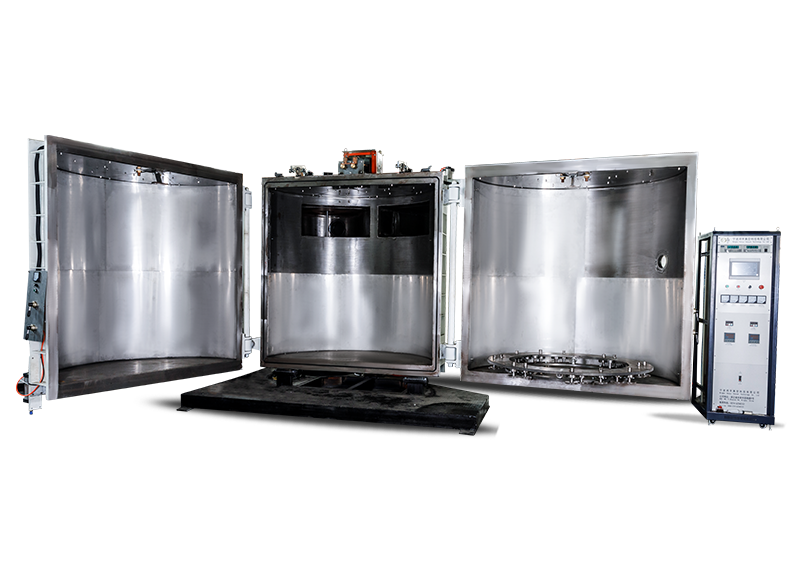

High Vacuum Thin Film Metallizing Coating Machine

Evaporation coating equipment is a special equipment specialized in evaporating aluminum wire, chromium wire and copper wire on the plastic surface. It uses resistance heating to melt and vaporize the metal wire, so that metal molecules can be deposited on the substrate to obtain a smooth metal film with high reflectivity, so as to achieve the purpose of decorating and beautifying the surface of articles.

>> Applications <<
  • High Vacuum Thin Film Metallizing Coating Machine
  • High Vacuum Thin Film Metallizing Coating Machine
  • High Vacuum Thin Film Metallizing Coating Machine
  • High Vacuum Thin Film Metallizing Coating Machine
  • High Vacuum Thin Film Metallizing Coating Machine
  • High Vacuum Thin Film Metallizing Coating Machine
  • High Vacuum Thin Film Metallizing Coating Machine
  • High Vacuum Thin Film Metallizing Coating Machine
  • High Vacuum Thin Film Metallizing Coating Machine
  • High Vacuum Thin Film Metallizing Coating Machine
  • High Vacuum Thin Film Metallizing Coating Machine
  • High Vacuum Thin Film Metallizing Coating Machine
PREV：Semi-Auto Horizontal Single Door Evaporation Vacuum Coating Machine
NEXT：Plc Touch Screen Vertical Double Door Evaporation Coating Equipment

Description

Our equipment is customized according to customer needs, we will customize according to your specific needs for your equipment, specific details please contact us. Performance: the use of resistance heating in the room to obtain cheap and good quality plastic surface decoration equipment, any background color of plastic can be plated into gold, silver, red, purple, blue, gray, black, colorful and other colors after vacuum plating, with improved product grade, appearance more beautiful role.

Advantages

The equipment is widely used in cosmetics, toys, mobile phones, home decorations, automobiles, all kinds of small household appliances, bathroom spraying, acoustics, clocks and watches and other industries.

Process materials: ABS, PS, PP, PC, PVC, TPU, nylon, glass, ceramics, metal, etc.

The surface state of the process materials: bright surface of ordinary electroplating, dumb surface (semi dumb, full dumb), process electroplating wrinkles, wire drawing, raindrops, etc.

The plating colors are: translucent, gold, silver, rose gold, black, red, green, blue, pink, purple, gradient, rainbow, etc.

Uniformity

Uniform film deposition rate

LOWER COST

SINGLE PRODUCT COATING COST IS LOWER

HIGH SPEED

FAST DEPOSITION SPEED, HIGH IONIZATION RATIO AND BIG PRODUCTION

EASY OPERATION

FULL AUTO, EASY LEAN AND OPERATE

COMPLETE ENVIRONMENTAL

WITHOUT ANY POLLUTION

REMOTE CONTROL

REMOTE CHECKING AND INSPECTION

Device parameters

MODEL

HY-1618

HY-1820

HY-2020

CHAMBER SIZE

Ø1600*1800mm

Ø1800*2000mm

Ø2000*2000mm

CHAMBER STRUCTURE

Vertical single door, vertical double doors, horizontal single door

COATING METHOD

Resistance heating, ion bombarding

ULTIMATE VACUUM

8.0*10-4Pa (empty load)

VACUUM TIME

Empty load from atmosphere to 5.0E-2 less than 6min

CONSUMPTION MATERIAL

Tungsten wire, aluminum wire, copper wire, chromium wire, etc

COATING COLOR

translucent, gold, silver, rose gold, black, red, green, blue, pink, purple, gradient, rainbow, etc.

CONTROL METHOD

Full auto, semi-auto, manual, PLC touch screen

SPECIAL REQUIREMENTS

Customized

Ningbo Honyu Vacuum Technology Co., Ltd.

Ningbo Honyu Vacuum Technology Co., Ltd. is well-known China High Vacuum Thin Film Metallizing Coating Machine suppliers, located in Ningbo, a port city in Hangzhou Bay Economic Belt, China.

After 30 years of technical precipitation, the company has hired senior design consultants, experts and senior engineers, and a professional military technology team. Our company implements the one-stop service model at domestic and overseas, formulates the design scheme according to the needs of customers, as well as the process flow of equipment commissioning operation and quality control in production and operation. With high-quality after-sales service and lifelong technical guidance, we escort customers' production and development and avoid worries. The process turnkey project provides strong technical support for the development of well-known coating manufacturers at domestic and overseas. As a famous OEM/ODM High Vacuum Thin Film Metallizing Coating Machine company, our company integrates R & D, design, production and sales, and is based on high-grade and high-end markets.

The main products are: multi arc ion coating equipment, magnetron sputtering coating equipment, bathroom hardware decoration coating equipment, optical coating equipment, glass ceramic special coating equipment, DLC tool coating equipment, custom High Vacuum Thin Film Metallizing Coating Machineetc. It is widely used in hardware sanitary ware, large furniture board, clock, mobile phone, aerospace, electronic products, automobile, mold tools, various decorations and other industries.

With advanced process technology to meet the needs of environmental protection, the shortcomings of water electroplating are solved. Laws and regulations correspond to domestic and international environmental protection policies to purify water for the earth.

Experience

30+

30 years of precipitation

Employee

100+

More than 100 employees

Technology Precipitation, Strength Foundation.

  • Service

    We focus on developing high-quality products for top-end markets. Our products are in line with international standards. We can provide whole coating technology supporting.

  • Multiformity

  • Quality

    90% of our machine parts are produced by ourselves in our own factory, so that we can control the quality, which can ensure the quality of the machines.

  • Cost

    We are machine manufactures, so we can offer the price and products directly.

  • Customization

    We have a strong R&D team, which can develop and produce according to the special needs or samples provided by customers.

Honor

The Honor
We Have Received.

Based on the development concept of "based on domestic and facing the world", the company keeps pace with the times, and is willing to join hands with domestic and foreign customers to develop together and create a better future.

NEXT

FAQ

  • 5. WHAT APPLICATIONS DO YOUR PRODUCTS RELATE TO?

    Mainly is used for metal, sanitary wares, big size furnitures and sheet, watch, mobile phone, aerospace industry, electrical parts, automobile, mould and tools, all decoration industries and so on.

  • 4. WHAT PRODUCTS CAN YOU OFFER?

    We focus on all types of vacuum coating machines.

  • 3. ARE YOU A DIRECT MANUFACTURER OR TRADING COMPANY?

    We are PVD machine manufacture, we also have our own domestic and international sales department. We produce and sell all by ourselves.

  • 2. What is the information needed from the customers to give the quotation?

    The products material, colors, production capacity, machine size and so on.

  • 1. HOW LONG CAN I GET THE FEEDBACKS AFTER WE SENT THE INQUIRY?

    We will reply to you within 12 hours of the working day.
